Residential series

AM-01 to AM-10, built for everyday homes

Ten models in aluminium, zinc alloy and stainless steel, from mortise handle locks and knob locks to face recognition push-pull locks and glass door locks.

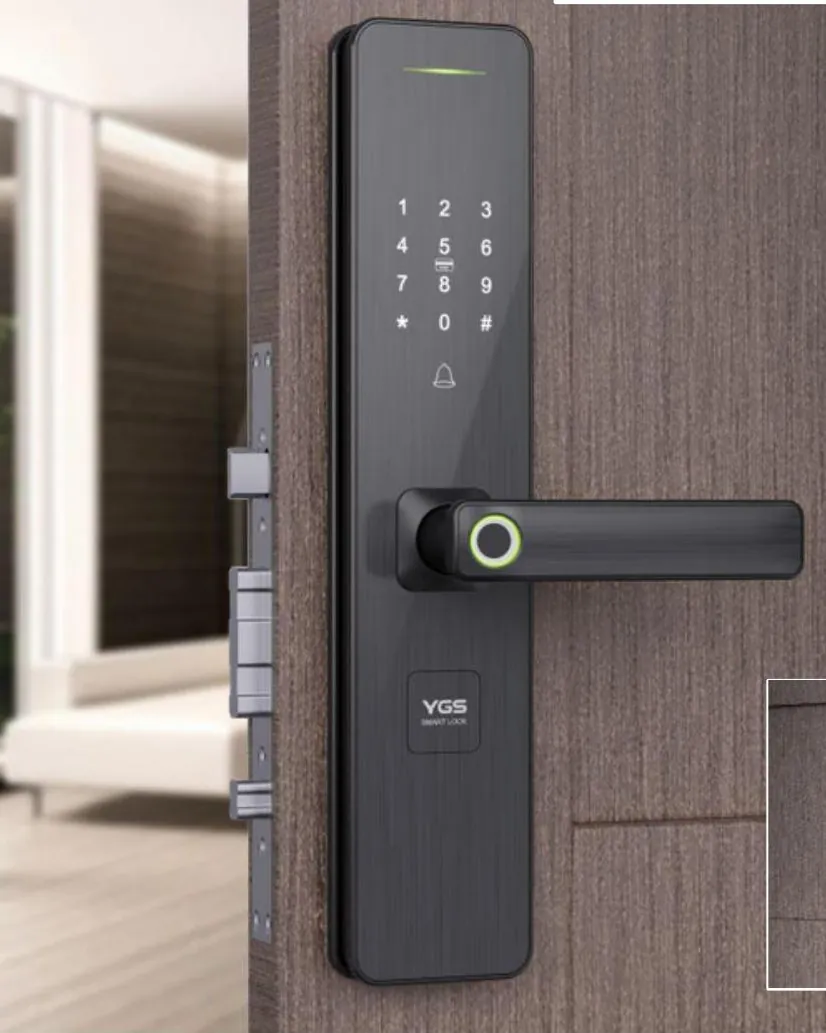

AM-01

Aluminium alloy

Mortise handle lock. Micro-USB emergency power. Works from -15 to 55 degrees C.

Unlock: Fingerprint, password, key, card, app
Fitting: Centre distance 68 mm, backset 60 mm
Door thickness: 35 to 110 mm
Power: 4 x AA alkaline (6 V), 5,000 to 6,000 unlocks

Ask for a quote

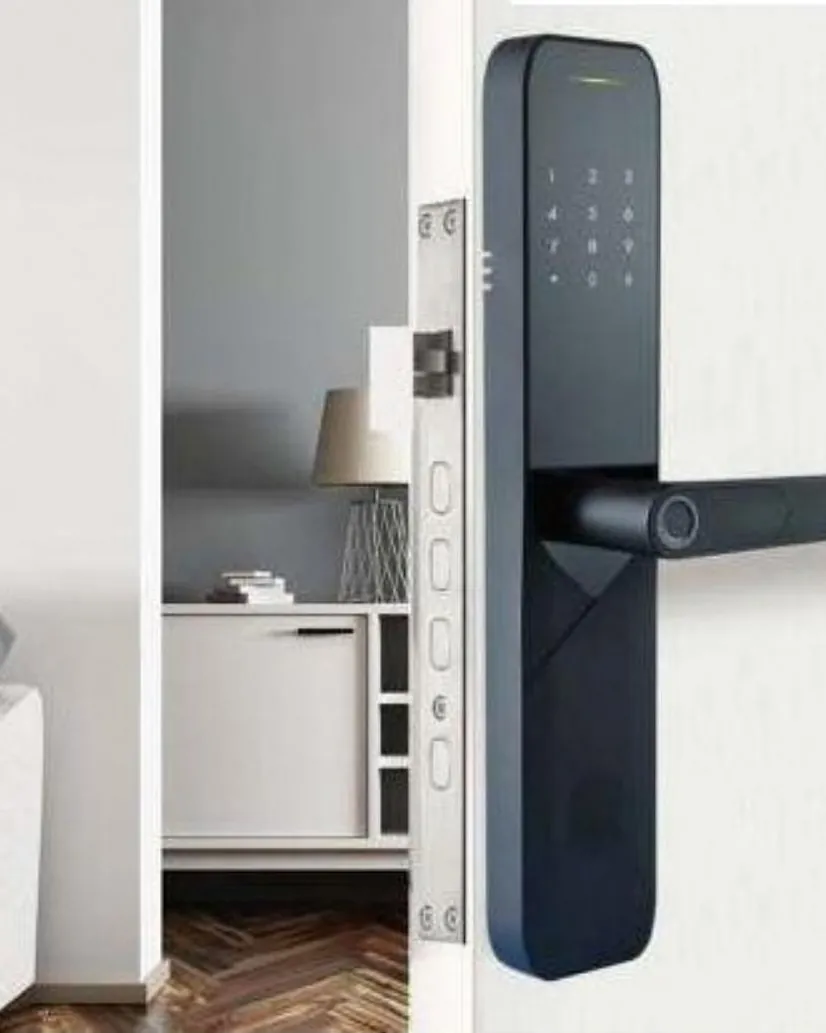

AM-02

Aluminium alloy

Mortise handle lock. Micro-USB emergency power. Works from -15 to 55 degrees C.

Unlock: Fingerprint, password, key, card, app
Fitting: Centre distance 68 mm, backset 60 mm
Door thickness: 35 to 110 mm
Power: 4 x AA alkaline (6 V), 5,000 to 6,000 unlocks

Ask for a quote

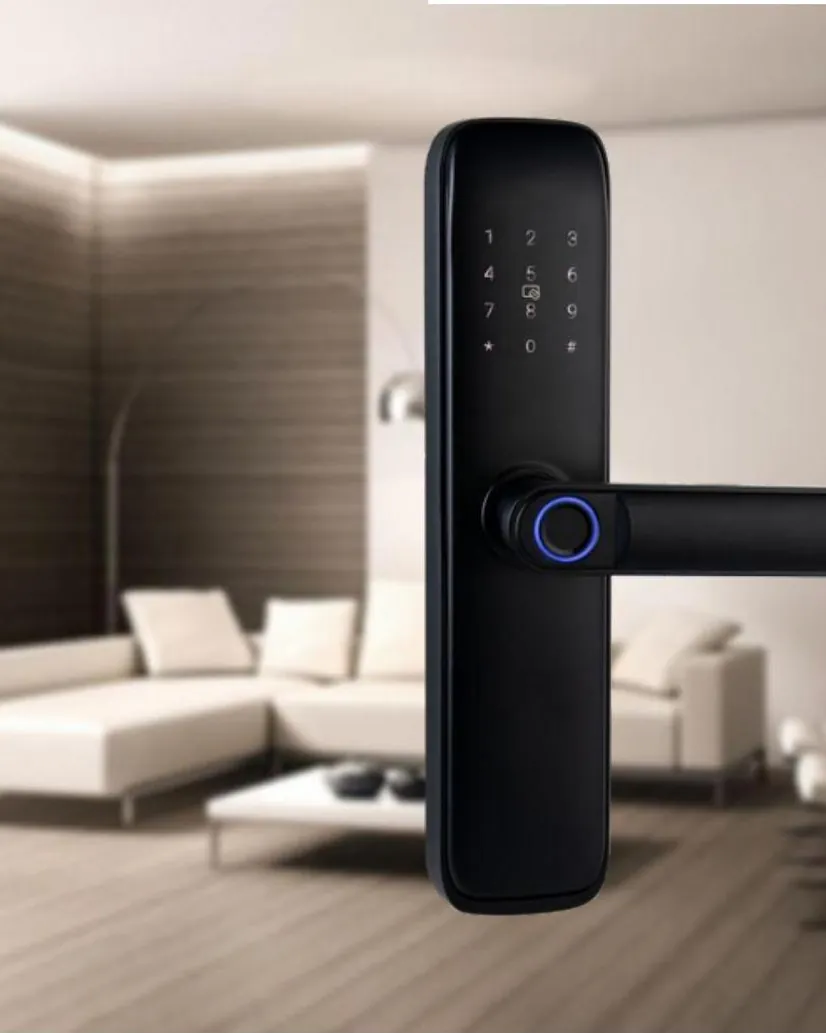

AM-03

Aluminium alloy

Mortise handle lock. Micro-USB emergency power. Works from -15 to 55 degrees C.

Unlock: Fingerprint, password, key, card, app
Fitting: Centre distance 68 mm, backset 60 mm
Door thickness: 35 to 110 mm
Power: 4 x AA alkaline (6 V), 5,000 to 6,000 unlocks

Ask for a quote

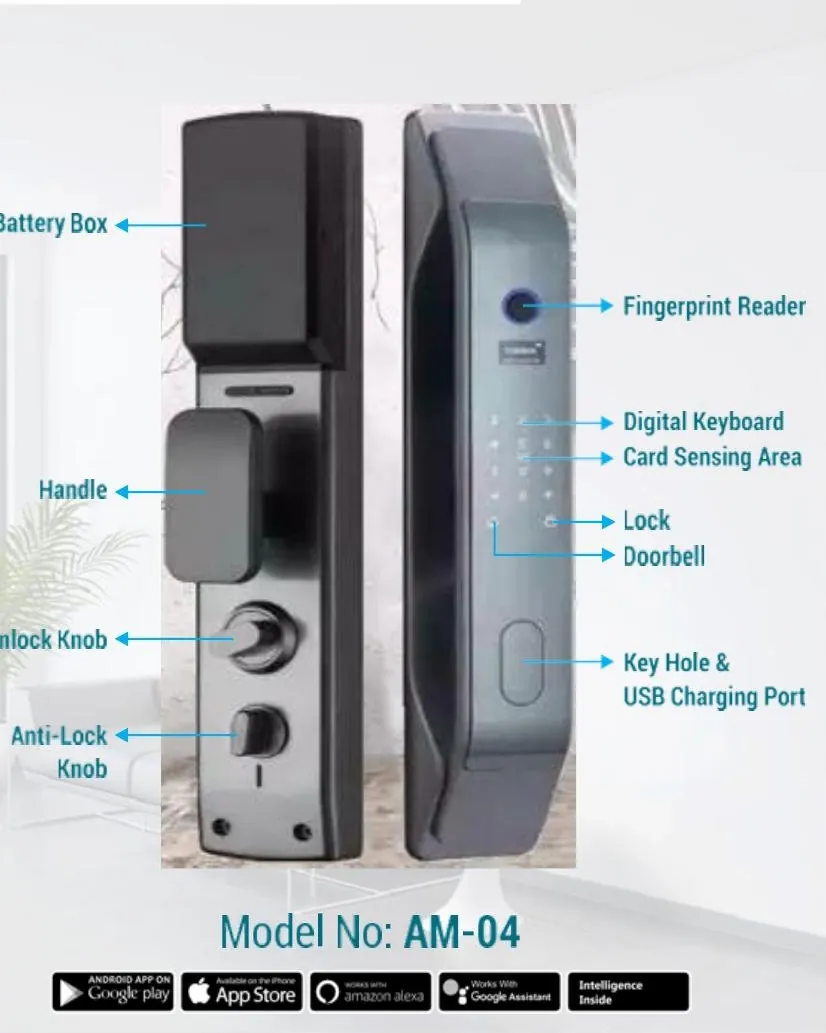

AM-04

Zinc alloy

Slim push-pull lock with battery box. Built-in doorbell. Star Gray, Red or Bronze. Lock body 6068-240x24.

Unlock: Fingerprint, password, key, card, app, face
Fitting: 405 x 75 mm
Door thickness: 40 to 100 mm
Power: Rechargeable lithium battery (USB)

Ask for a quote

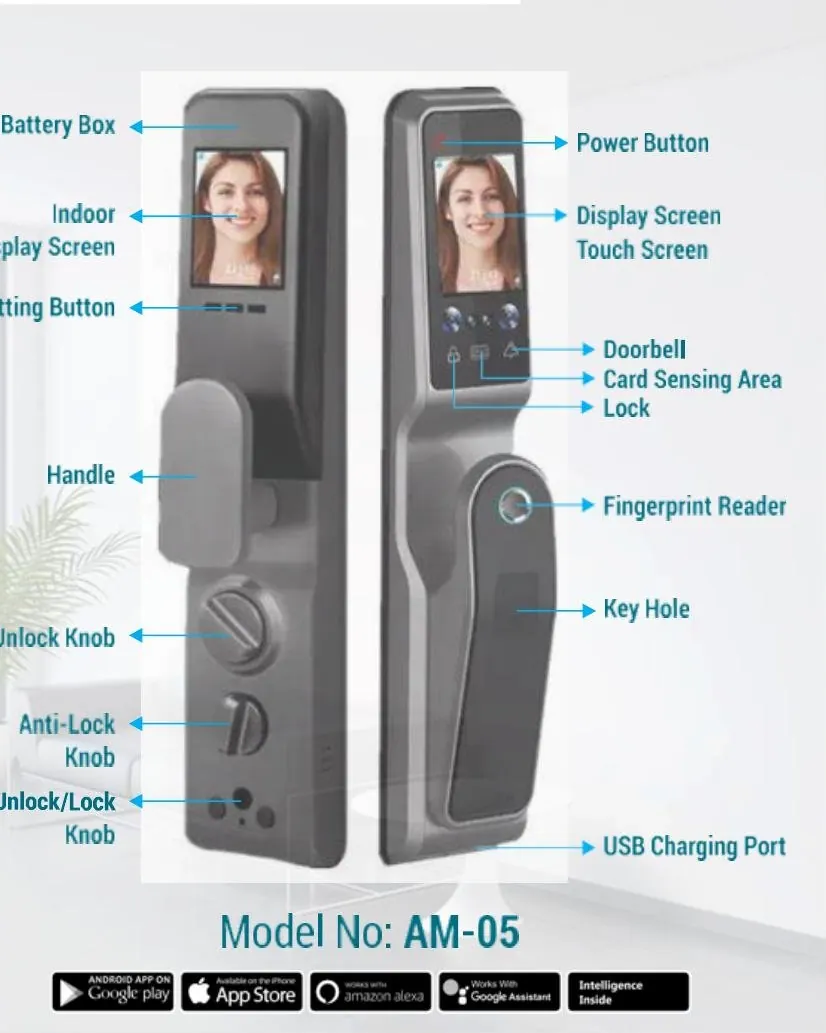

AM-05

Zinc alloy

Face recognition push-pull lock. Indoor display with touch screen. Built-in doorbell. Star Gray, Red or Bronze.

Unlock: Fingerprint, password, key, card, app, face
Fitting: 405 x 75 mm
Door thickness: 40 to 100 mm
Power: Rechargeable lithium battery (USB)

Ask for a quote

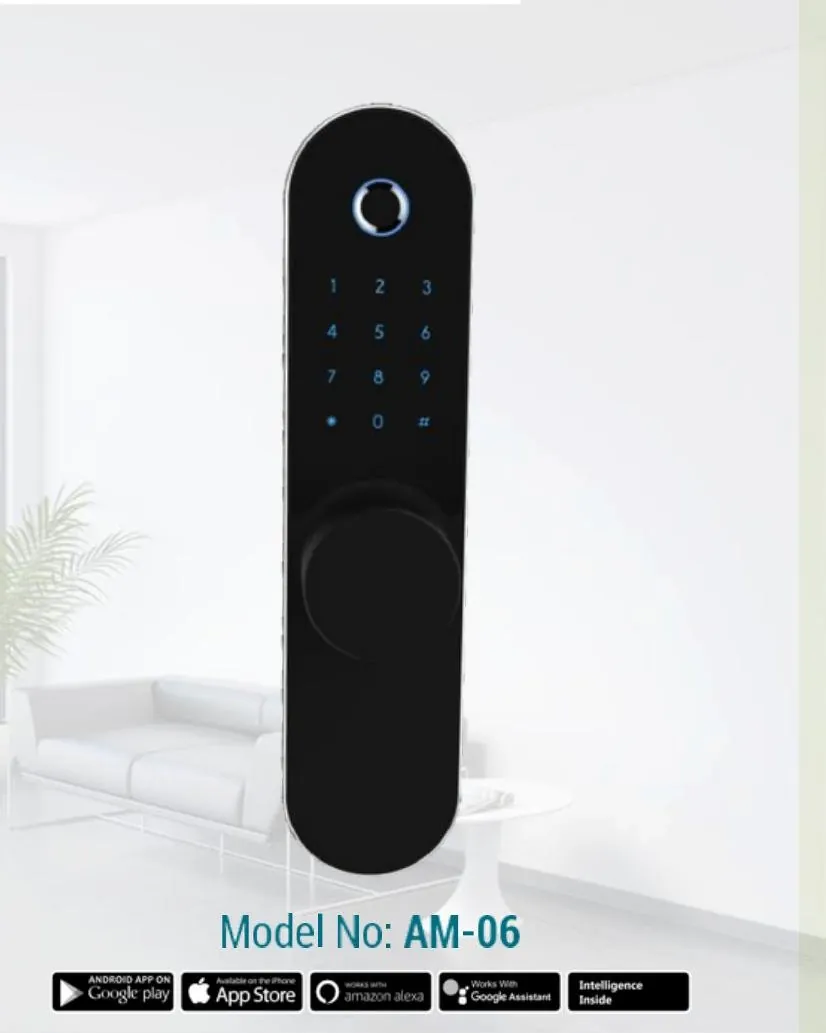

AM-06

Oval body, mortise

Knob-style handle lock. Black finish.

Unlock: Fingerprint, password, key, card, app, Wi-Fi
Fitting: Mortise fitting
Door thickness: See mortise drawing
Power: Contact us

Ask for a quote

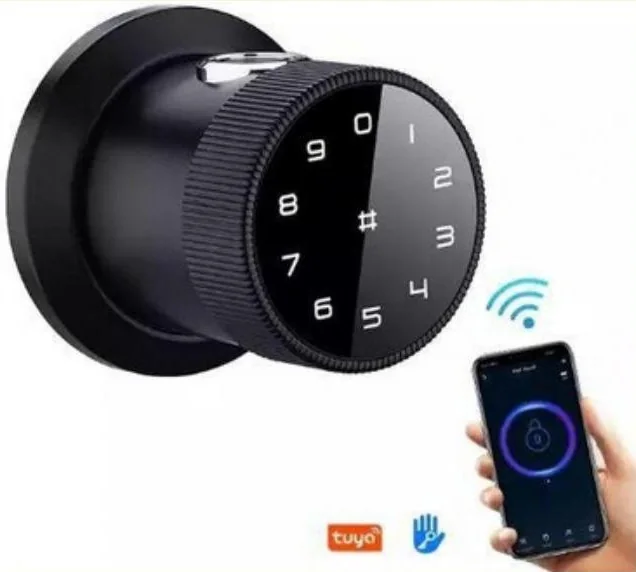

AM-07

Zinc alloy

Knob lock. Cool Black.

Unlock: Fingerprint, password, key, card, app (Tuya)
Fitting: 72 x 60 x 83 mm
Door thickness: 35 to 55 mm
Power: 4 x AA batteries

Ask for a quote

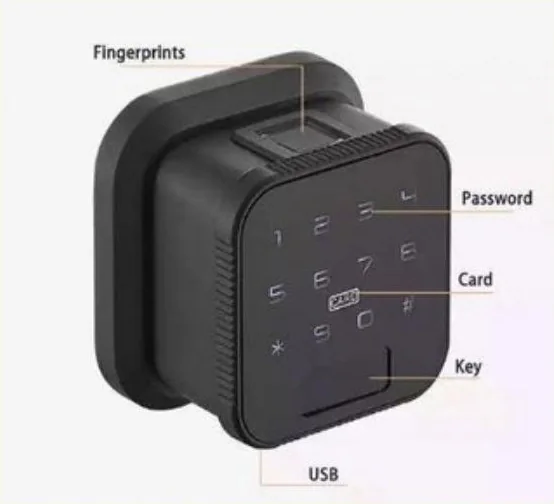

AM-08

Zinc alloy

Knob lock. Black.

Unlock: Fingerprint, password, key, card, app
Fitting: 72 x 60 x 83 mm
Door thickness: 35 to 55 mm
Power: 4 x AA batteries

Ask for a quote

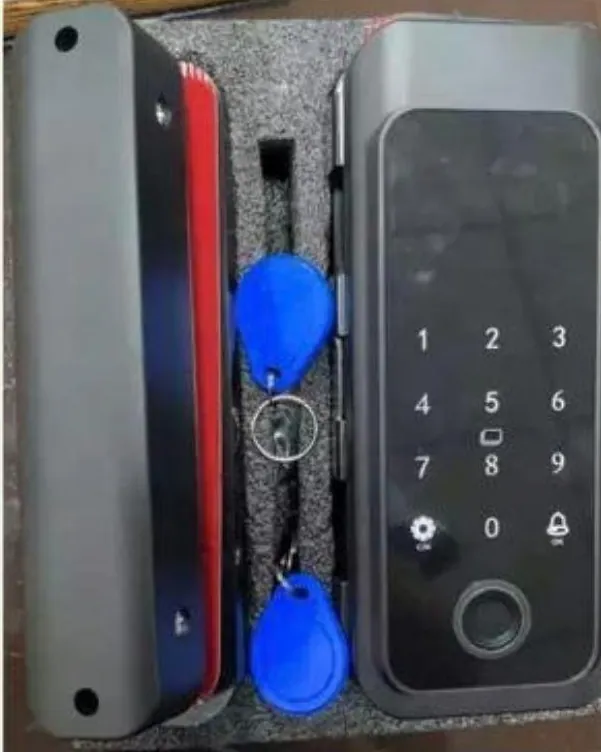

AM-09

Zinc alloy

Glass and wooden door lock. Black.

Unlock: Fingerprint, password, card, app
Fitting: Contact us
Door thickness: 8 to 12 mm
Power: 4 x AA batteries

Ask for a quote

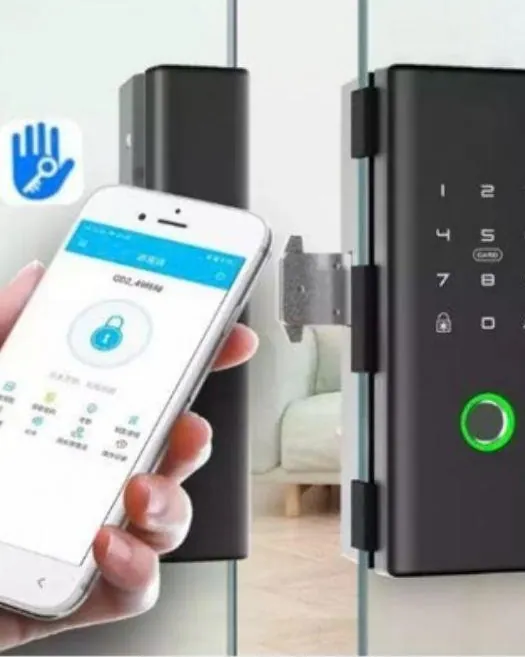

AM-10

304 stainless steel and alloy

Glass door lock. Black.

Unlock: Fingerprint, password, card, app
Fitting: 171 x 70 mm
Door thickness: 10 to 12 mm
Power: 4 x AA batteries

Ask for a quote

Residential series locks use a semiconductor fingerprint sensor that reads in 0.3 s, with a false-reject rate under 0.01%, and work from -15 to 60 degrees C. The C-grade cylinder resists technical unlocking for at least 270 minutes.

Multiple access

Smartphone app (Android and iOS)
Fingerprint
PIN code
RFID card (MIFARE)
Mechanical key

User management

Multi-user access points
Admin and multiple users
Unlocking records

Easy operation

Fingerprint on the handle
Touch screen
Turn-up handle for deadbolt
Passage mode

Battery powered

Long battery life
Low battery notification
4 x AA alkaline
USB backup port

High security

Automatic locking
Privacy deadbolt
Hardened solid deadbolts
High security cylinder
High security mechanical key
Dual verification mode
Anti-theft fake PIN
Anti-burglar alarm
Child-proof inside handle
